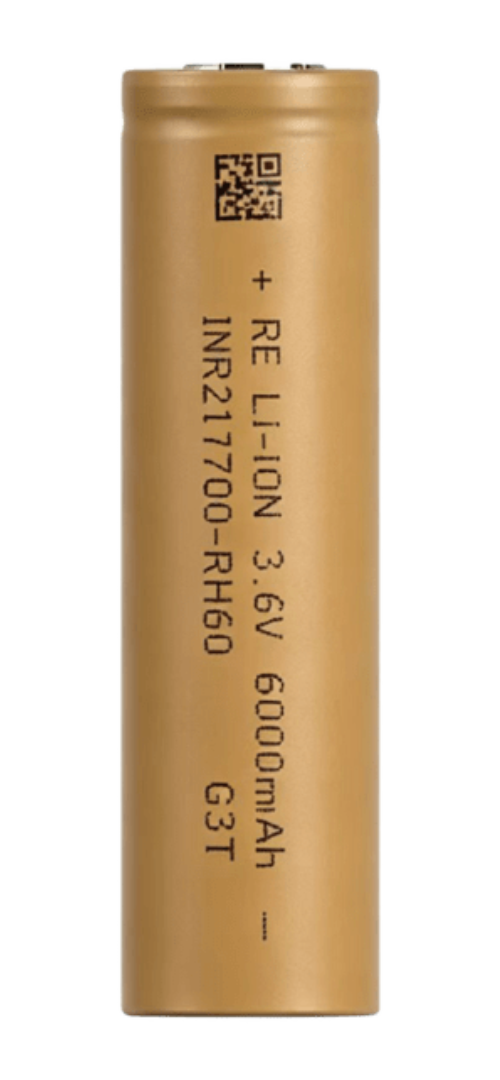

INR21700-RH60
More stored energy for extended operation.
A 6,000 mAh 21700-format cell with a 20 A maximum continuous discharge rating, designed for battery systems that prioritise runtime, stored energy and efficient pack architecture.
High stored energy for runtime-led pack designs.
Choose this cell when extending operating time or reducing parallel cell count is a primary design objective and a 20 A maximum continuous discharge rating meets the verified load profile. Its 6,000 mAh capacity makes it a strong candidate for energy-focused 21700 packs. Its 304 Wh/kg gravimetric energy density provides a clear basis for comparing it with other cells in the portfolio.
High capacity supports extended missions and duty cycles.
May help meet energy targets with fewer parallel cells.
Well suited to applications that value endurance over peak output.
Core specifications
| Model | INR21700-RH60 |
|---|---|
| Capacity | 6000mAh |
| Maximum continuous discharge | 20A |
| Maximum continuous charge | 6A |
| Internal resistance | ≤ 7 mΩ |
| Nominal voltage | 3.6V |
| Nominal energy | 21.6Wh |
| Weight | 71g |
| Gravimetric energy density | 304Wh/kg |
Final cell selection must be validated against the complete datasheet, load profile, thermal design, charging strategy, pack architecture, operating environment and applicable certification requirements.
