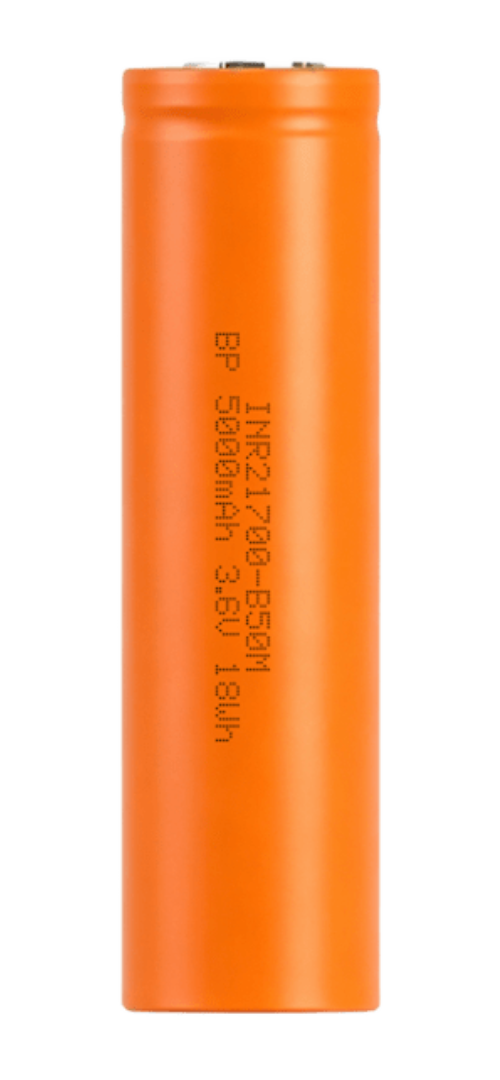

INR21700-B50M
Dependable energy for moderate-power systems.
A 5,000 mAh 21700-format cell with a 35 A maximum continuous discharge rating, suited to battery systems that prioritise energy delivery, runtime and efficient thermal operation.
An energy-focused choice for moderate load profiles.
Choose this cell when the application values runtime and stored energy more than extreme current capability. Its 5,000 mAh capacity and 35 A discharge rating suit moderate-power 21700 pack designs, subject to complete electrical and thermal validation. Its 253 Wh/kg gravimetric energy density provides a clear basis for comparing it with other cells in the portfolio.
Capacity supports useful operating time between charges.
Well matched to verified loads below high-power extremes.
Relevant to custom packs and broad distributor portfolios.
Core specifications
| Model | INR21700-B50M |
|---|---|
| Capacity | 5,000 mAh |
| Maximum continuous discharge | 35 A |
| Maximum continuous charge | 2 C |
| Internal resistance | ≤ 15 mOhm |
| Nominal voltage | 3.6 V |
| Nominal energy | 18 Wh |
| Weight | 71 g |
| Gravimetric energy density | 253 Wh/kg |
Final cell selection must be validated against the complete datasheet, load profile, thermal design, charging strategy, pack architecture, operating environment and applicable certification requirements.
Discuss the B50M with Baynor.
Request technical information, availability and commercial terms for your programme.
